How to Tag The Chart Widget for Figma to Elementor?

If you're using any charts (bar chart, pie chart, etc.) in your Figma design to show statistics, you can tag those elements as a Chart widget from The Plus Addons for Elementor using the UiChemy plugin. When you export the design as an Elementor template, that section will use the Chart widget.

What Can Be Tagged?

A frame can be tagged as a Chart widget.

How to Tag?

To do this, you can choose between two options: Step by Step Method or Quick Conversion. Here, we'll go with the Step by Step Method.

1. First, select the Step by Step Method and click the Start button.
2. Select the top-level page or frame of your layout, then click the Next button.
3. Under the Widget Tagging Mode tab, select the Manual Widget Tagging option.
4. Next, under the Manage Auto Layout tab, you'll see two options: It's already in Auto Layout and Convert to Auto Layout. We'll go with the first option.
5. After that, under the Tag Widgets tab, choose the frame or container that contains your element (widget). Then search for the Chart widget from The Plus Widgets in the UiChemy panel and select it. Here you'll see all the supported Elementor widgets.

On the next screen, you'll see information about which element you're tagging as which widget, followed by widget-specific tagging options.

6. From the Chart Type dropdown, select the chart type.
7. Once done, click the Save button to complete the tagging, and you'll see a Tagged successfully message.

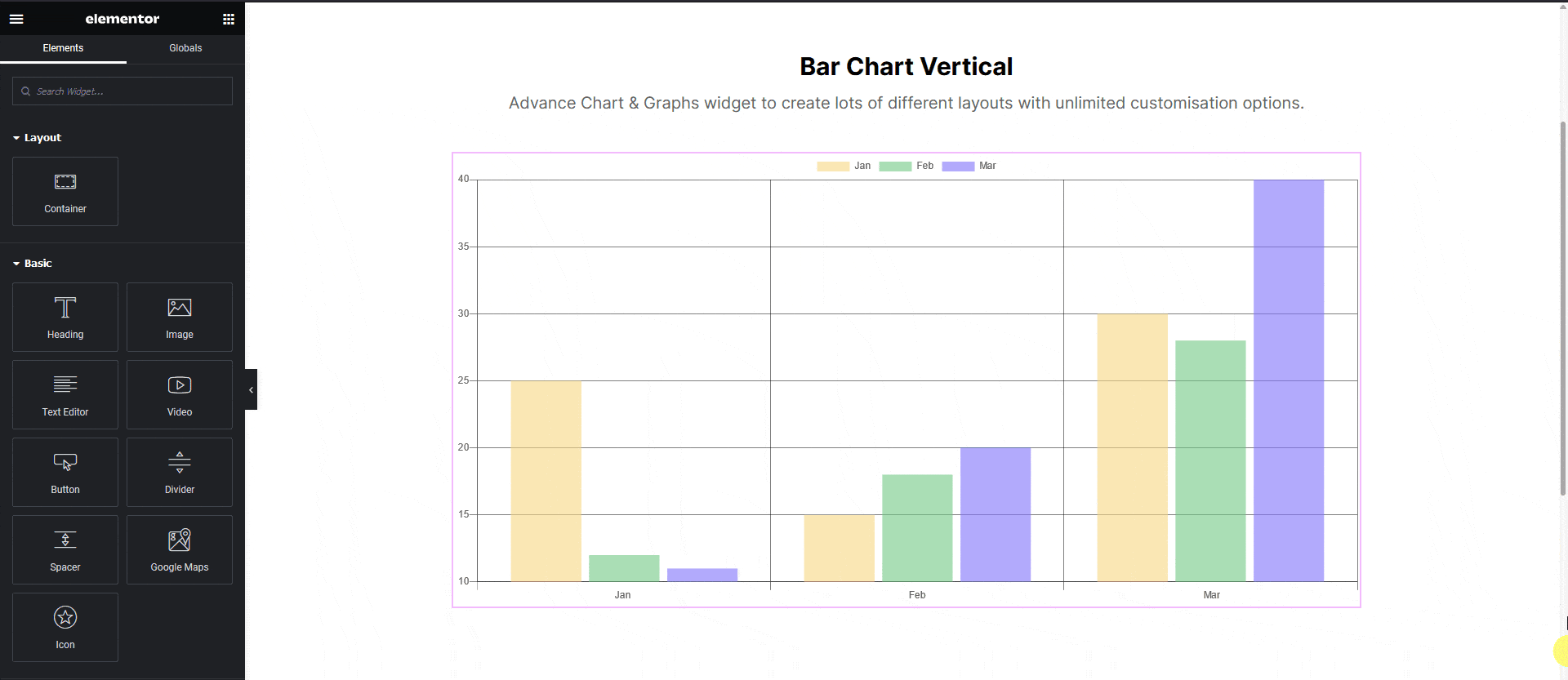

Now, if you export the design, that element will use the Chart widget from The Plus Addons for Elementor.
